Laser Stencil Technology
Precision laser-cut stencils and metal parts for PCB manufacturing. Same-day service at no extra charge. ISO certified. Est. 1989.
Complete SMT Stencil Solutions
From laser-cut stencils to framing systems and cleaning equipment — everything your PCB assembly line needs, from a single specialist supplier.
Laser Cut Stencils
Precision SMT stencils cut to ±4 micron accuracy over the full 600×600mm working area. Step, relief, PIH, BGA repair, and glue dot variants available.
- Axial precision ±4 micron (X/Y)
- Foil thickness 50–250 micron
- Trapezoidal apertures for optimum paste release
- Same-day turnaround available
Precision Metal Parts
Laser-cut and chemically etched components including RF cans, brackets, and custom precision parts. No tooling costs. Prototypes to volume.
- LPKF–YAG laser equipment
- Chemical photo-etching capability
- RF cans in steel and brass
- Same-day prototype service
Stencil Frames
Pneumatic, Zelflex Protect, and DEK VectorGuard framing systems for fast, accurate stencil tensioning and deployment across multiple projects.
- Pneumatic 4-sided stretch frames
- Zelflex Protect with air pressure
- DEK VectorGuard — no pneumatics needed
- Stencil changeover in under one minute

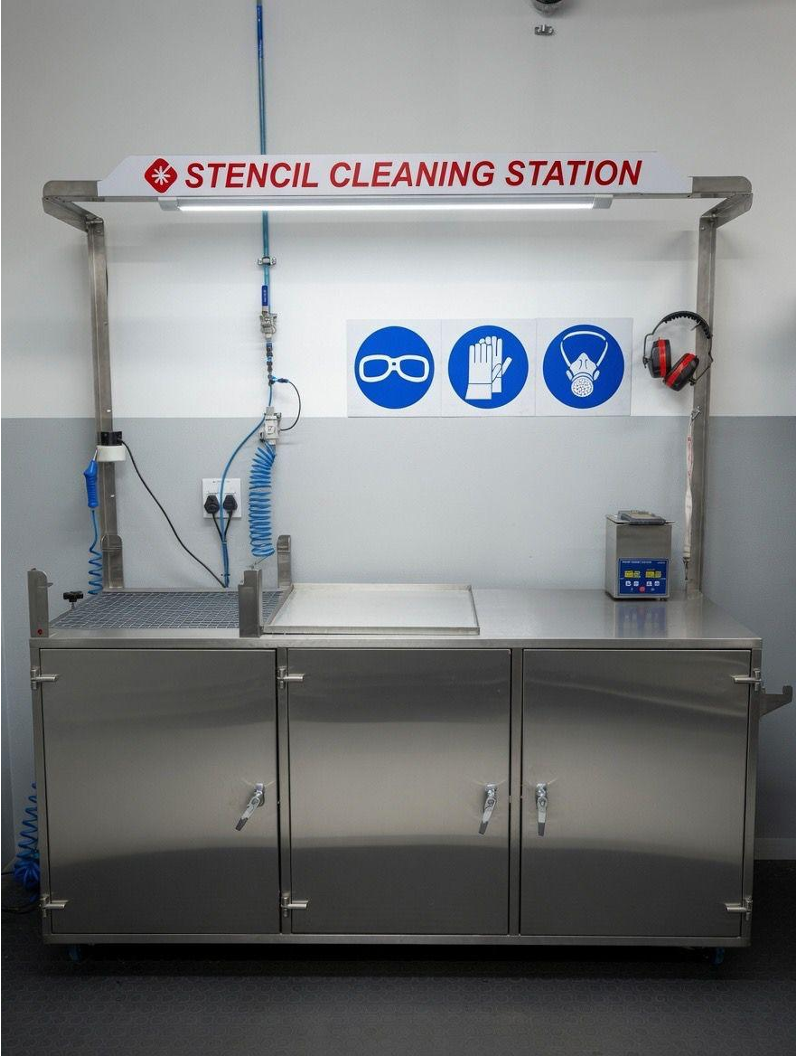

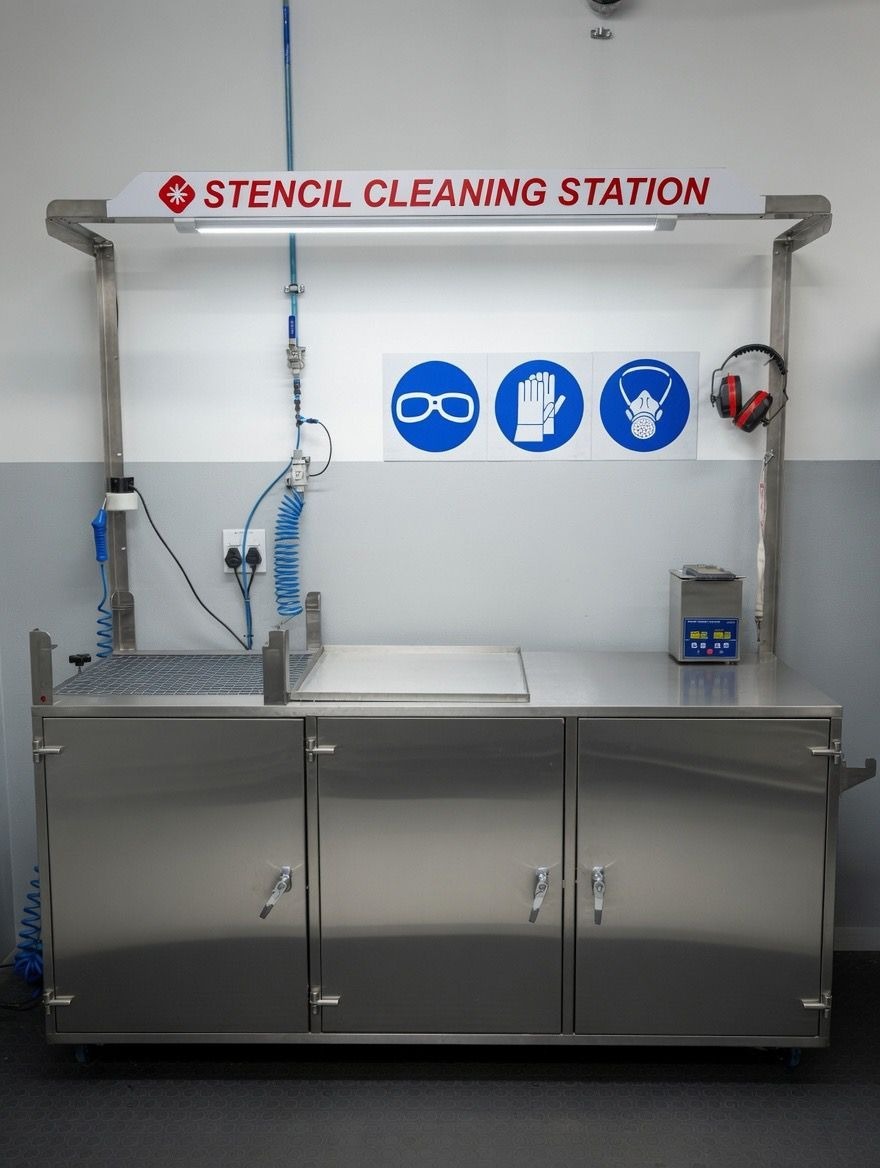

SAWA Ultrasonic Cleaners
Effective stencil cleaning via ultrasonic vibration — removes solder paste from fine-pitch apertures in minutes. Three models available.
- SC-5000GBS, SC-500HE, SC-AH600 Ecobrid
- Cleans fine-pitch apertures in minutes
- Comparable performance at lower cost
- Ultrasonic vibration directly on stencil
Precision
South Africa's Leading Stencil Specialist
Laser Stencil Technology has been supplying precision stencils and metal parts to South Africa's top contract manufacturers and OEMs since 1989.
Our in-house engineering department handles data preparation within the hour, enabling genuine same-day production. With ISO certification, IPC-600 compliance, and state-of-the-art LPKF–YAG laser equipment, we deliver consistent, reliable results across every order.
Built for Precision. Focused on Service.
Same-Day Service
In-house engineering prepares your data within the hour. Same-day production at no extra charge.
ISO Certified
ISO-certified operations with adherence to IPC-600 standards and ongoing calibration programs.
±4 Micron Precision
State-of-the-art LPKF–YAG laser ensures axial precision to ±4 micron across the full working area.
Expert Technical Support
Many years of PCB engineering and contract manufacturing experience backing every order.
Nationwide Delivery
Prompt delivery throughout South Africa within two working days from our Midrand facility.
Environmentally Controlled
Spotlessly clean, environmentally controlled work areas with redundant service components for uninterrupted supply.
Prototype & Pre-Production Stencil Printer
Stencil printing deposits solder paste onto printed wiring boards (PWBs) to establish electrical connections. Our prototype printer enables professional assembly of new designs with vertical and horizontal stencil separation for optimum paste deposit quality.
- Vertical/horizontal stencil separation for optimum paste deposit
- Suitable for prototype and pre-production runs
- Reduces setup complexity for new PCB designs
- Available for demonstration at our Midrand facility
Precision at Every Scale
Have questions about laser stencils? Ask our experts.
Our engineering team can assist with aperture design, aspect ratios, paste-in-hole specs, and defect troubleshooting. Same-day response.
