Stencil Cleaning Solutions

Surclean Stencil Cleaning Range

Designed for Performance and Sustainability

Consistent, reliable stencil printing is a prerequisite for high-quality SMT assembly. Poor stencil cleanliness directly increases defects, rework and yield losses. The Surclean portfolio offers an engineered range of stencil cleaning materials and chemistries that help manufacturers protect print quality, reduce downtime and lower total operating costs.

Cleaning solutions are tailored for every stage of stencil maintenance — from manual spot-cleaning at the printer to fully automated under-stencil and offline cleaning systems. The range includes safer solvent blends engineered for fast, effective residue removal, and lint-free saturated and dry wipes suitable for manual wiping, hand-sprayer applications and automated paper-roll or wipe systems.

Proven Effectiveness

Proven effectiveness on solder paste, adhesive and flux residues encountered in modern SMT processes.

Greener Chemistries

A range of greener chemistries and low-VOC options that reduce environmental impact and regulatory risk.

Optimised Formats

Product formats optimised for manual and automated cleaning operations — reducing cycle time and consumable costs.

Technical Support

Technical support to help integrate cleaning solutions into existing IPC/J-STD process controls and supplier quality programs.

Surclean Product Range

Cleaning Solutions & Consumables

Six products covering every stage of stencil maintenance — from bulk liquid solvents to pre-saturated and dry wipe formats.

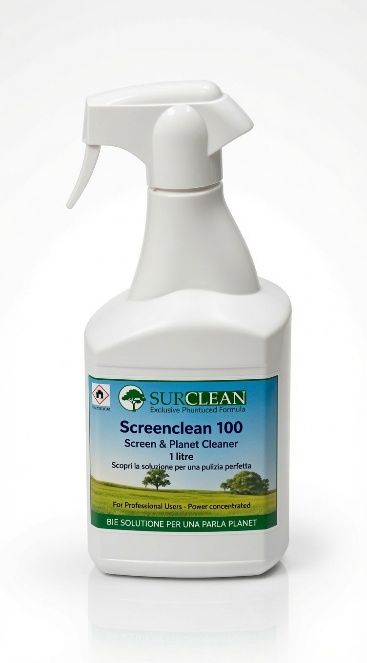

SC100-1L

SCREENCLEAN 100 STENCIL CLEANER 1L

Fast-acting, low-VOC stencil cleaning solvent in a ready-to-use 1L sprayer.

Screenclean 100 is a fast-acting stencil-cleaning solvent formulated to remove solder paste and most adhesives quickly and effectively. A Propylene Glycol Ether-based formulation, it dissolves and lifts solder paste, adhesives, resins and rosins quickly — even when residues have dried — and evaporates cleanly with minimal, non-tacky residue.

Volume 1 Litre

Formulation Propylene Glycol Ether-based

Format Ready-to-use hand sprayer

Dissolves and lifts solder paste, adhesives, resins and rosins quickly — even when dried
Low-VOC, non-ozone-depleting, biodegradable and non-bioaccumulative
Low toxicity, low odour and a high flash point for safer handling

Application: Manual cleaning between prints, supplied in a ready-to-use hand sprayer.

Enquire About This Product

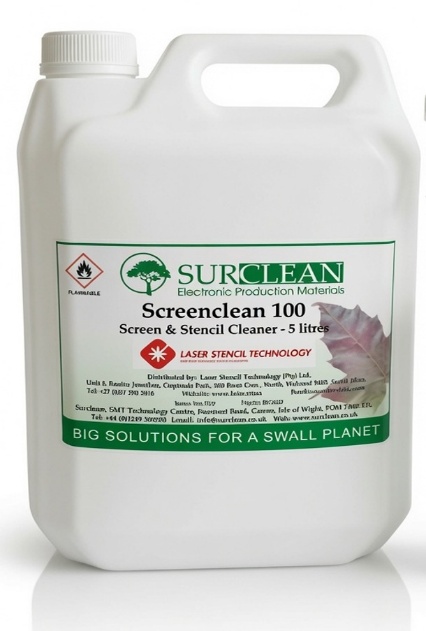

SC100-5L

SCREENCLEAN 100 STENCIL CLEANER 5L

The same proven Screenclean 100 formulation in an economical 5L bulk container.

Screenclean 100 dissolves and lifts solder paste, adhesives, resins and rosins quickly — even when residues have dried — and evaporates cleanly with minimal, non-tacky residue. Shows good compatibility with common elastomers, rubbers, industrial finishes and mesh-backed stencil adhesives.

Volume 5 Litres

Formulation Propylene Glycol Ether-based

Format Bulk container

Economical use rates with reduced solvent consumption for high-volume operations
Low-VOC, non-ozone-depleting, biodegradable and non-bioaccumulative
Good compatibility with elastomers, rubbers and mesh-backed stencil adhesives

Application: Bulk supply for automated stencil printers using paper-roll under-stencil cleaning systems, and for refilling hand sprayers.

Enquire About This Product

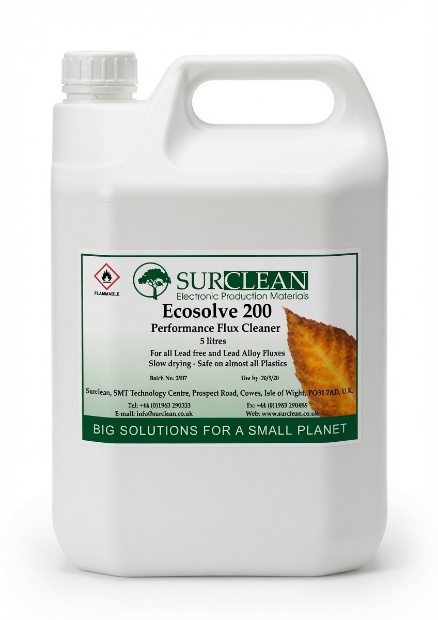

ES200-5L

ECOSOLVE 200 PERFORMANCE FLUX CLEANER 5L

High-performance solvent blend for stubborn flux deposits and uncured adhesives.

ECOSOLVE 200 is a high-performance solvent blend formulated for demanding precision cleaning tasks in electronics manufacturing. Designed to tackle stubborn residues such as flux deposits and uncured adhesives, it delivers enhanced solvency compared with conventional IPA while maintaining compatibility with most plastics, rubbers and elastomers.

Volume 5 Litres

Format Liquid solvent blend

Compatibility Most plastics, rubbers and elastomers

Superior cleaning power — dissolves heavy residue loadings including rework flux and SMD adhesives
Controlled, slower evaporation gives extended wet contact time for effective brush agitation
Lower vapour pressure than IPA contributes to reduced VOC emissions during use

Application: Removal of flux residues and white salts from PCBs, elimination of uncured and SMD adhesive residues during rework, and general degreasing of electronic assemblies.

Enquire About This Product

SC100-PRO-200

SCREENCLEAN 100 PRO WIPES

Pre-saturated 70/30 IPA/DI wipes for fast, affordable routine cleaning.

An affordable, high-value cleaning solution designed for routine maintenance and quick cleanup tasks in workspaces, production benches and laboratories. Formulated to balance effective residue removal with safety and convenience.

Solution 70% IPA / 30% Deionized Water

Sheet Size 200mm x 220mm

Count 200 sheets per tub

Pre-saturated with 70/30 IPA and deionized water for removal of oils, flux residues and fingerprints
Low-lint, high-absorbency substrate leaves no fibres or streaks on sensitive surfaces
Foil-sealed tub of 200 perforated sheets with resealable pull-through lid

Application: General manufacturing, electronics assembly, cleanroom-adjacent tasks and routine workbench maintenance.

Enquire About This Product

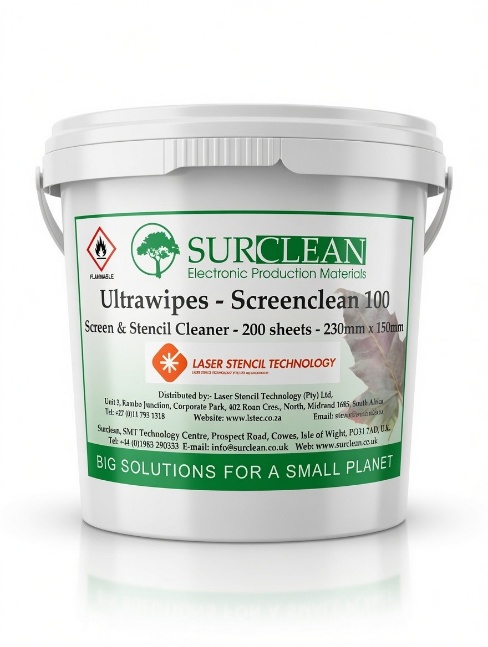

SC100-ULTRA-200

SCREENCLEAN 100 ULTRAWIPES

Premium hydro-entangled wipes for high-performance stencil and residue removal.

High-performance wipes designed for rapid, reliable removal of solder paste and adhesive residues from stencils and related surfaces. Each wipe is a carefully engineered blend of virgin polyester and rayon, hydro-entangled for excellent absorbency, tensile strength and abrasion resistance.

Sheet Size 230mm x 150mm

Count 200 saturated sheets per tub

Material Virgin polyester/rayon, hydro-entangled

Rapid, reliable removal of solder paste and adhesive residues from stencils
Premium virgin polyester/rayon blend with minimal particle generation
Maintains structural integrity and wet burst strength during extended cleaning cycles

Application: Under-stencil automatic cleaning systems and heavy-duty manual wiping.

Enquire About This Product

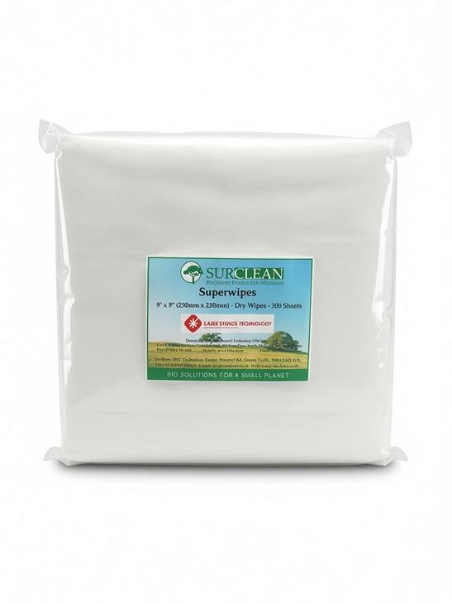

SC100-SUPER-300

SCREENCLEAN 100 SUPERWIPES

Premium dual-textured dry wipes for precision cleaning, including cleanroom use.

Premium, hydroentangled polyester-rayon wipes engineered for demanding cleaning tasks in electronics and precision manufacturing. High wet strength and excellent resistance to linting make them ideal for stencil cleaning and contamination-controlled environments.

Sheet Size 230mm x 230mm (9" x 9")

Count 300 dry sheets per pack

Cleanroom Available airwashed, double-bagged (Class 100)

Dual-textured — one ultra-smooth side and one embossed side for heavier deposits
Manufactured without chemical binders and free from abrasive cellulose fibres
Available airwashed and double-bagged to meet cleanroom Class 100 requirements

Application: Stencil cleaning, component preparation and general surface maintenance — including cleanroom Class 100 environments.

Enquire About This Product

Why It Matters

Engineered for Modern SMT Production

For manufacturers seeking measurable yield improvements, lower operating costs and more sustainable cleaning options, Surclean provides practical, validated solutions you can deploy across the SMT assembly line.

Performance Benefits & Operational Savings

Surclean materials consistently improve PCB yields by removing solder paste, adhesives, flux residues and other process contaminants that degrade print definition and create defects. Improved cleaning reduces the frequency of printer adjustments and downtime, lowers scrap and rework rates, and extends stencil service life.

Meeting the Demands of Complex PCBA Designs

As PCBA designs evolve to smaller track widths and finer pitch components, residues become harder to remove and more impactful to assembly yield. The range is designed to rapidly soften and dissolve residues so they can be removed without damaging fine apertures or delicate PCB finishes — compatible with IPC and J-STD cleaning requirements.

Flexible for Every Cleaning Workflow

From bench-top manual wipes and sprays for fast intervention, to semi-automated under-stencil systems and high-throughput offline cleaning — the portfolio is formulated to be compatible with common stencil materials, adhesives, rubbers and industrial finishes across a broad set of production environments.

Order Surclean products or request more information

Contact our team for pricing, availability, technical data sheets and delivery on the complete Surclean stencil cleaning range.
